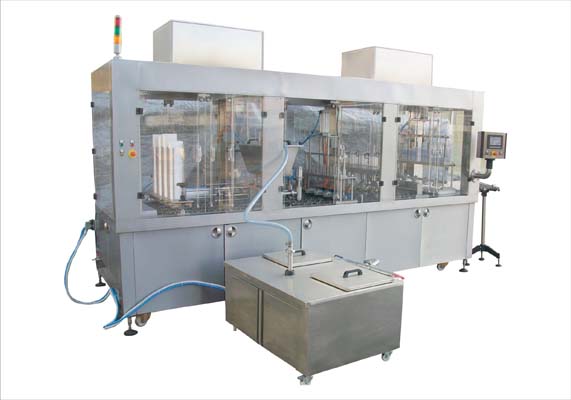

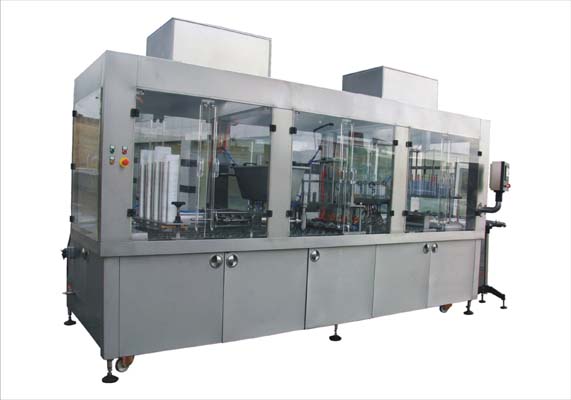

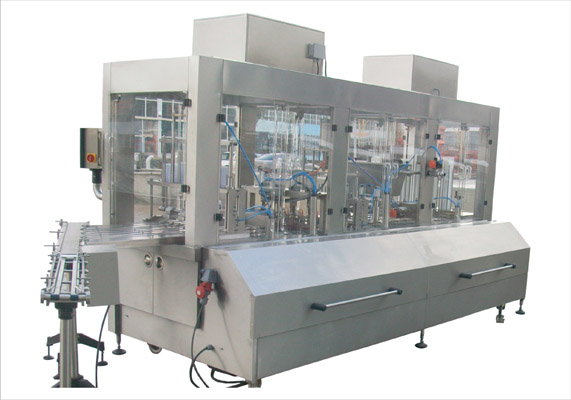

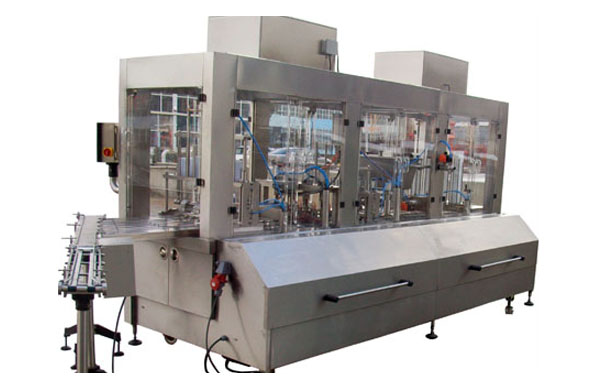

FULLY AUTOMATIC ROTARY SYSTEM FILLING AND CLOSING MACHINE - LABNE CHEESE (00-4L –SERVO – LABNE)

Fully automatic rotary type cup filling and closing machines  for filling a variety of different products into pre-made cups which may be of plastics, aluminium, carton, coex, tin or glass. The filling range extends from liquids to high viscosity, powdery products or products with particulates. Our rotary type machines cover an lane range between 1 – 5 lanes  in standart. According to customer requirements we can tailorall of the features of the machines.

The basic frame of the machine has a modular construction. The frame houses the driving groups and the gear box which are easily accessible. All product leading parts are made of stainless steel or plastics suitable for food.



00-4L-LP Type filling and sealing machines cover an output range between4000 – 5000 packs per hour. Output can be change according to the both type of drive version and the specifications of the filling material.

In optional machine cantains two differant filling station; we can use one of these for filig cream cheese and the other one is for filling labne cheese



Control panel:

  • PLC System (touch screen, with pictograme, operator friendly genious program)
  • Elektro machanic universal control panel



Dosing systems:

  • Piston dosing systems
  • Mass flow measuring
  • Or combinations of these features



Drive versions:

  • Servo motor
  • Mechanical drive
  • Or combinations of these features



Closing Systems:

  • Pre-made aluminium foils
  • Sealing from rollstock and lid-cutting
  • Sealing from OPP-Lamination rollstock with integrated cuttig
  • Heatsealing (with IP68 type-washable  heaters)
  • Ultrasonic sealing



Extra attainable features:

  • Cup sterilization system (hydrogen peroxide with specially manufactured nozzles)
  • Lid sterilization system (sterilized with strong ultraviolet radiation)
  • Laminar airflow system with the prescribed fitler
  • Fully automatic case packer (automatik collection system)
  • Mobile C.I.P. cleaning system



Fields of application:

  • Dairy industry (yoghurt, milk, cream, buttermilk, cream cheese, kefir, quark etc.)
  • Fruit processing (jam, plum, fruit juice and apple purée, etc.)
  • Food industry (mustard, spreads, delicatessen, etc.)
  • Non-food (pastes, gels, creams, etc.)
