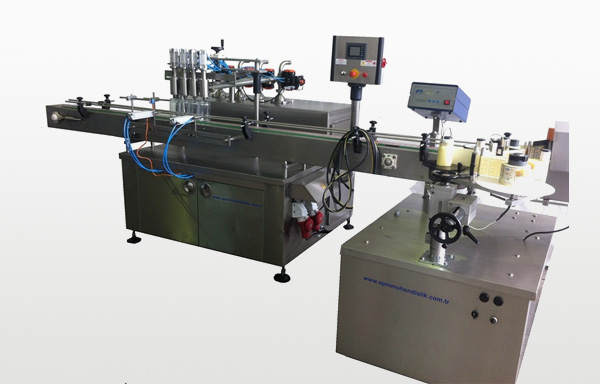

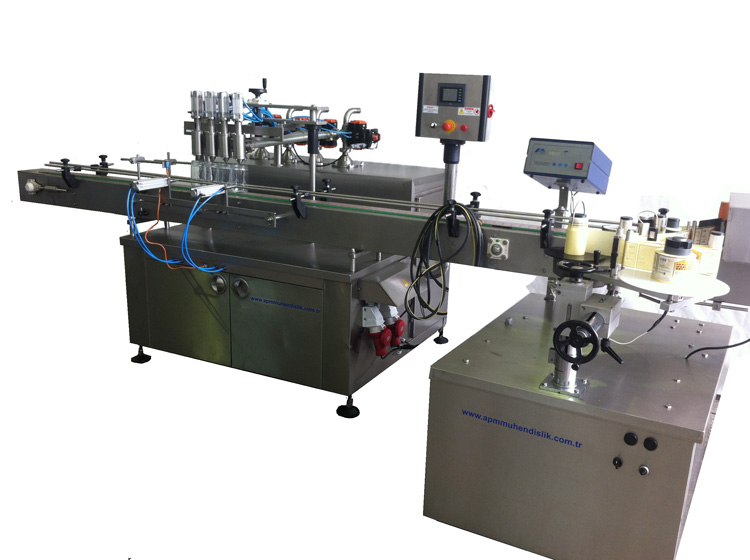

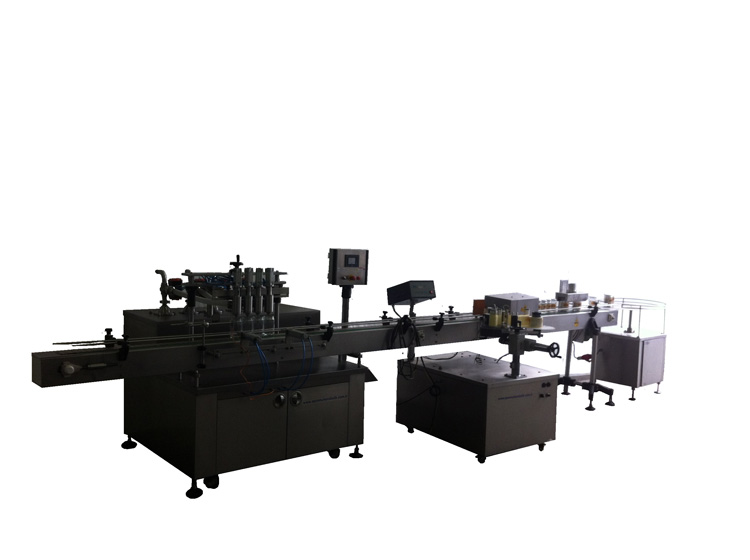

AUTOMATIC JAR ( jam) FILLING AND LABELLING MACHINE (00-4C-e)



Conveyor type filling and closing machines for filling a variety of different products into various kinds of pre-made cups which may be of plastics, aluminium, carton, coex, tin or glass . The cup sizes can be change-over to an other cup size very quickly. The filling range extends from liquids to high viscosity, powdery products or products with particulates.

Our machines cover an lane range between 1– 10 lanes in standart.According to customer requirements we can tailor all of the features of the machines.

The basic frame of the machine has a modular construction. The frame houses the driving groups and the gear box which are easily accessible. All product leading parts are made of stainless steel or plastics suitable for food.



00-4C-e AUTOMATIC JAR (jam) FILLING AND LABELLING MACHINE cover an output range between 1.400 – 1.800 packs per hour. Output can be change according to the both type of packaging material and the specifications of the filling material.

Outstanding features about the conveyor type fiiling machines are:

* Quick change-over to another cup size

* The possibility to run a variety of different cups

* Optionally digital and volumetric dosage adjustment system

* Simple and elegant operation

* Easy cleaning through a self-draining design and a minimum of movements through the machine table.

* Dosing systems without dirt traps

* Optimized CIP/SIP systems



Control panel:

* PLC System (touch screen, operator friendly genious program)

* Elektro macanic universal control panel



Dosing systems:

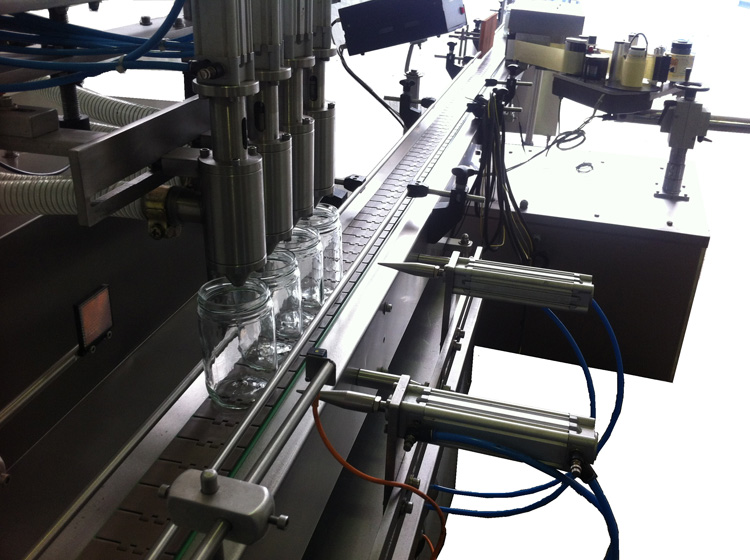

* Piston dosing systems

* Inductive flow measuring

* Mass flow measuring

* Weighing dosing systems (e.g. for fruit or meat pieces, powders etc.)

* Or combinations of these features



Drive versions:

* Servo motor

* Asenkron motor and gearbox system



Extra attainable features:

* Cup sterilisation system (hydrogen peroxide with specially manufactured nozzles)

* Lid sterilisation system (sterilised with strong ultraviolet radiation)

* Laminar airflow system with the prescribed fitler (class 100.000)



Fields of application:

* Dairy industry (butter milk, yoghurt, milk, cream, kefir, quark etc.)

* Fruit processing (jam, plum and apple purée, molasses, etc.)

* Food industry (mustard, spreads, delicatessen, etc.)

* Non-food (pastes, gels, creams)
