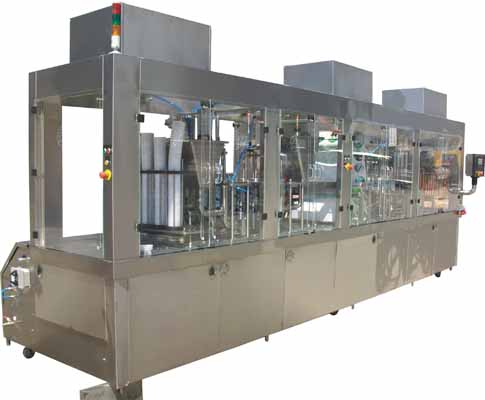

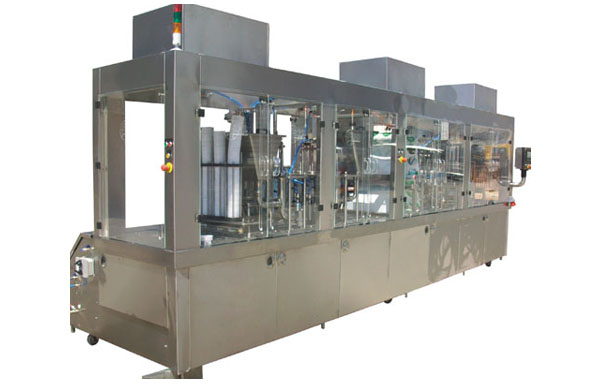

FULLY AUTOMATIC LINEAR SYSTEM FILLING AND CLOSING MACHINE WITH DOUBLE FILLING SYSTEM (95-2D-2Y-4L-OPP)

Fully automatic linear type cup filling and closing machines for filling a variety of different products into pre-made cups which may be of plastics, aluminium, carton, coex, tin or glass. The filling range extends from liquids to high viscosity, powdery products or products with particulates. Our machines cover an lane range between 2 – 10 lanes in standart. According to customer requirements we can tailor all of the features of the machines.

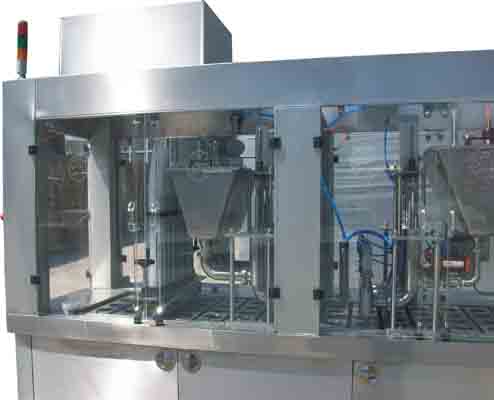

Thanks to the double filling station which was fixed on the machine; we can fill and seal two diffirent products which have wholley diffirent specifications than the other one.

The basic frame of the machine has a modular construction. The frame houses the driving groups and the gear box which are easily accessible. All product leading parts are made of stainless steel or plastics suitable for food.

95-4L-2F Type filling and sealing machines cover an output range between 4.000 – 5.000 packs per hour. Output can be change according to the both type of drive version and the specifications of the filling material.

Machine contains two diffirent filling station; we can use one of these for filling cream cheese and the other one is for filling buttermilk (ayran) .



Control panel:

  • · PLC System (with clored touch screen, operator friendly genious program)
  • · Elektro macanic universal control panel

Dosing systems:

  • Piston dosing systems
  • Inductive flow measuring
  • Mass flow measuring
  • Weighing dosing systems (e.g. for fruit or meat pieces, powders etc.)
  • Or combinations of these features

Drive versions:

  • Servo motor
  • PacDrive
  • Mechanical drive
  • Or combinations of these features

Closing Systems:

  • Pre-made aluminium foils
  • Sealing from rollstock and lid-cutting
  • Sealing from OPP-Lamination rollstock with integrated cuttig
  • Heatsealing (with IP68 type-washable heaters)
  • Ultrasonic sealing

Extra attainable features:

  • · Cup sterilisation system (hydrogen peroxide with specially manufactured nozzles)
  • · Lid sterilisation system (sterilised with strong ultraviolet radiation)
  • · Laminar airflow system with the prescribed fitler
  • · Fully automatic case packer (automatik collection system)

Fields of application:

  • Dairy industry (yoghurt, milk, cream, kefir, quark etc.)
  • Fruit processing (jam, plum and apple purée, etc.)
  • Food industry (mustard, spreads, delicatessen, etc.)
  • Non-food (pastes, gels, creams)
